Hinge joint field fencing from 1050mm to 2400mm

A roll of hinge joint fencingHinge joint fencing has four wrap hinge joint, in which two vertical stay wires wrap together to from hinged joint. This knot acts as a hinge that gives under pressure, then springs back into shape. This provides easy installation because the hinge "gives" while retaining full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexibility. Hinge joint fence is always called farm fencing.

Hinged mesh - cheap and durable substitute for chain link fence, it is used in fencing pastures, fields, forests and other large areas, also used as a material for animal cages, grape trellis and plant support in garden.

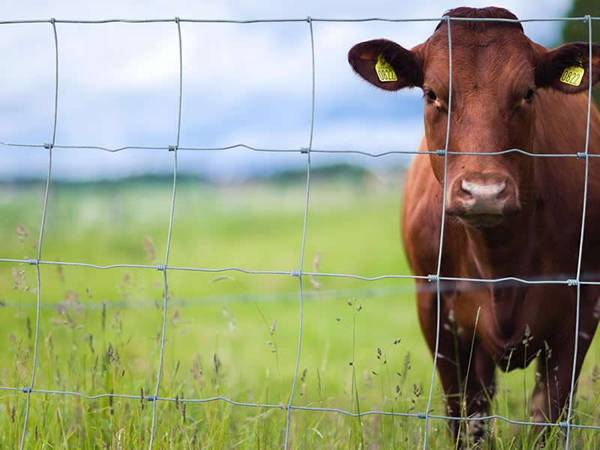

Hinge joint fencing is the best choice of ranchers for protecting his jumping animals like deers, horses and cow, sheep and goat. At the bottom of the fence, height mesh height of 5cm fencing is also recommended for various types of poultry, such as chicken, rabbits, and keeps your farm fields, roads, forests and gardens from the incursions of rabbits and foxes. This hinge joint knot type field fencing is economical knot fence.

Advantages:
Easy installation.
Long life.
High utility value - wide range of applications (animals fields, farmland, lawns and gardens).

Our hinged joint fencing is made from galvanized wire with 1.6/2.0/2.5/3.0mm and the top and bottom wire 2.0/2.5/3.0/3.7mm. Fence height is from 1.050m to 2.400m. Other sizes also available according to your need.

Hinge joint knot
Hinge joint knot with hinge lock construction
Galvanized hinge joint fence in rolls
Galvanized hinge joint fence in rolls

Hinge joint field fence sizes

Hinge joint filed fence Details:
Materials: Zin Aluminum alloy wire or galvanized low carbon steel wire, both high tensile wire.

  Light duty fence Middle duty fence Heavy duty fence Extra heavy duty fence
Wire diameter (mm) Minimum tensile strength,(N/mm2) Wire diameter (mm) Minimum tensile strength,(N/mm2) Wire diameter (mm) Minimum tensile strength,(N/mm2) Wire diameter (mm) Minimum tensile strength,(N/mm2)
Top and bottom horizontal wire: 2.0 650 2.5 650 3.0 650 3.7 650
Other horizontal wires and vertical wires 1.6 450 2.0 450 2.5 400 3.0 400
Hinge joint field fence Types Fence height (mm) Horizontal wires number Distance between the vertical wires (mm) mesh opening number - mesh height (mm) Roll length (m)
HJF1050/13/15 1050 13 150 6-75, 6-100 50,100,150
HJF1250/15/15 1250 15 150 6-75, 8-100
HJF1550/18/15 1550 18 150 6-75, 11-100
HJF1550/15/15 1550 15 150 11-100, 3-150
HJF1850/20/15 1850 20 150 6-75, 11-100, 2-150
HJF1850/16/15 1850 16 150 10-100, 3-150, 2-200
HJF1950/17/15 1950 17 150 11-100, 3-150, 2-200
HJF2000/21/15 2000 21 150 6-75, 11-100, 3-150
HJF2400/23/15 2400 23 150 6-75, 11-100, 3-150, 2-200
Hinge joint fencing roll in unfolded state
Hinge joint fencing roll in unfolded state
Galvanized hinge joint fence details
Galvanized hinge joint fence details
Hinge joint fencing for chicken
Hinge joint fencing for chicken
Hinge joint fencing for deer
Hinge joint fencing for deer
Hinge joint fencing for trees protection
Hinge joint fencing for trees protection
Hinge joint fencing and barbed wire used for protecting farmland
Hinge joint fencing and barbed wire for protecting farmland
Hinge joint fencing rolls in our warehouse
Hinge joint fencing rolls
A pallet of field fencing
A pallet of field fencing
