Field Fence Installation Method – End Posts, Middle Posts & Wire Mesh

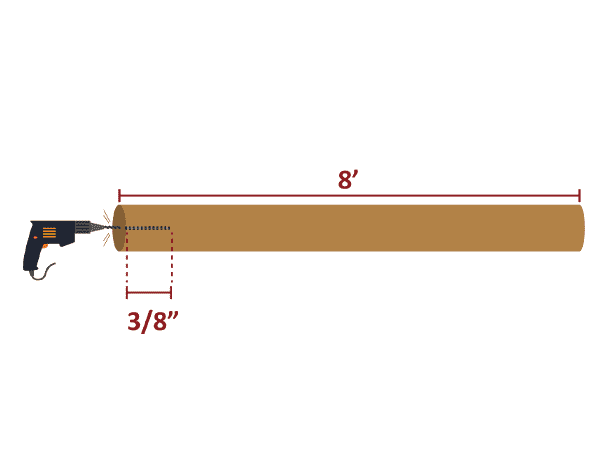

Step 4-2: Drill holes in 2 ends of the 8' high post center used as cross member with 3/8" drill bit.

Step 4-3: Drill a hole in the 2^nd end post at the same height as the 1^st end post hole with a 3/8" drill bit.

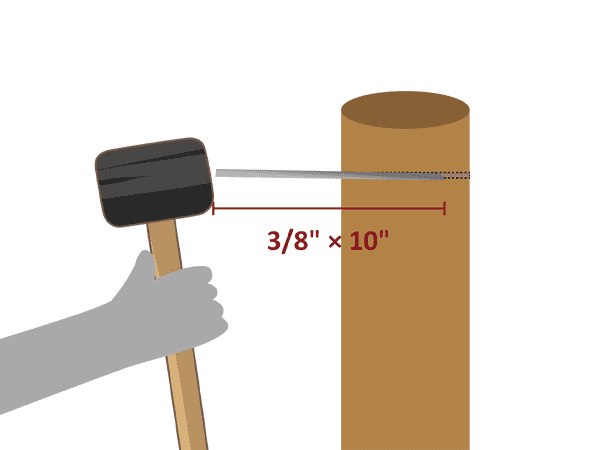

Step 5-1: Nail a 3/8" × 10" brace pin in the 1^st end post.

Step 5-2: Nail a 3/8" × 10" brace pin in the 2^nd end post in the opposite direction.

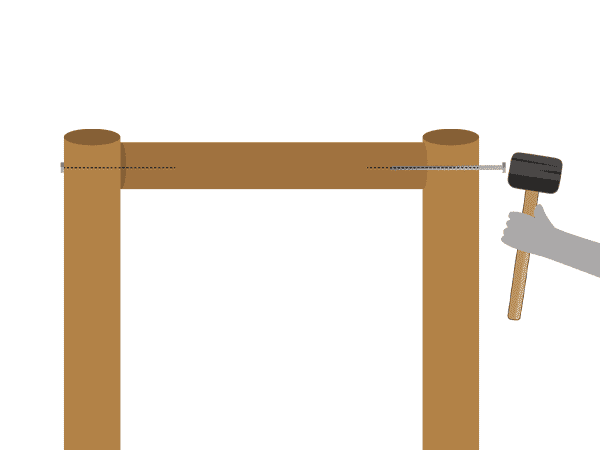

Step 6: Install a cross member and then hammer brace pins tightly.

Step 7: Get 2 boards to place under the 2 posts on one side separately and cover with dirt.

Step 8: 3 end posts and 2 cross members at the other end are installed to show completion, refer to steps (1–7).

Step 9: Get 1 long steel wire and connect its ends together with a wire joiner to form a loop.

Step 10: Wrap the wire loop around one side end posts diagonally. Wire loop on the other side is installed the same way.

Step 11: Tighten the wire joiners on both sides so that the wire loops fit against the end posts, and then cut the excess wire with pliers.

Step 12: The installation of the wire loops is complete and details are shown.

Step 13: Fix one nail on the top and middle of each of the 2 posts with wire loops on both sides with a hammer.

Step 1: Repeat the previous steps (1–3) of the end posts for installing the 61" high middle posts.

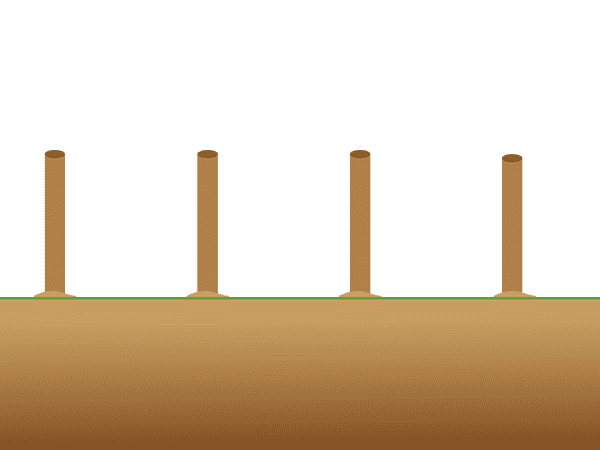

Step 2: Mark the stick, then take the stick and compare the height of each post to see if they are on the same level.

Step 3: Pour dirt into the holes and tamp them down.

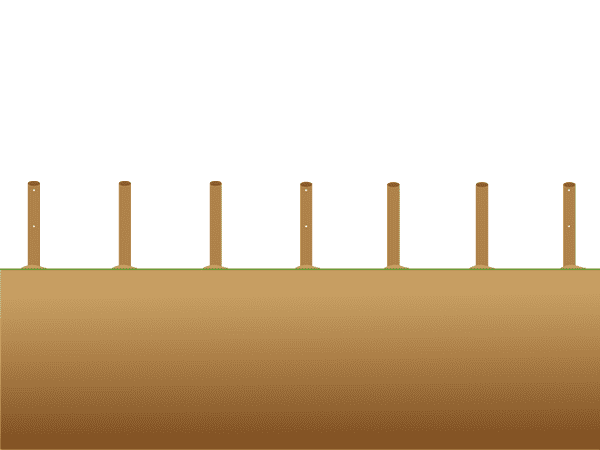

Step 4: Count 2 posts and put a nail in the top and middle of the third post, and so on.

Step 5: Wrap 2 wires around the 2 nails of one end post until they wrap around the nails of the other end post.

Step 1: Repeat the previous steps (1–3) of the end posts to install the wooden and metal posts in the holes.

Step 2: Fix T posts with a post driver.

Step 3: Mark the stick, then take the stick and compare the height of each post to see if they are on the same level.

Step 4: Pour dirt into the holes and tamp them down.

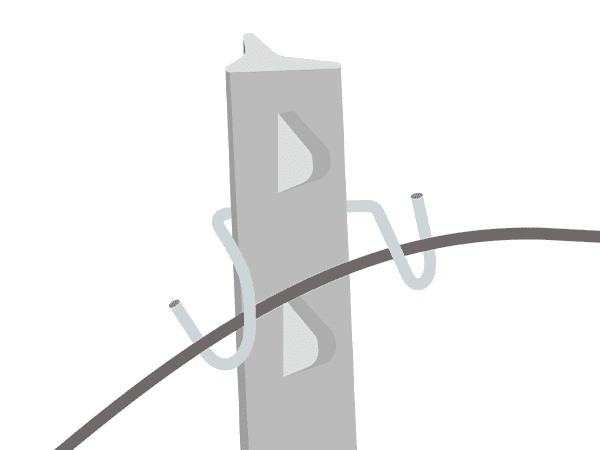

Step 5-1: Install 2 V clips on T posts depending on end post nails position by placing Vs through the horizontal wire after the mesh's installation.

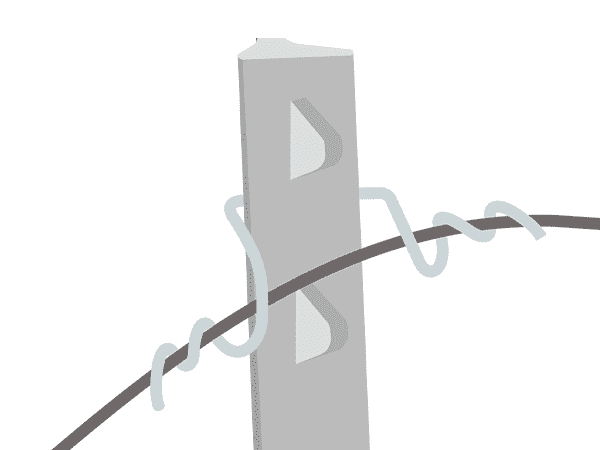

Step 5-2: Wrap the V clips around T post and the other V through the same horizontal wire of the wire mesh after the mesh's installation.

Step 6: Wrap wires around 2 nails of one end post and through the nails and V clips until they wrap around the other end post's nails.

Step 1: Unroll the 36" high wire mesh close to the posts.

Step 2: Place one end of the wire mesh through the end post.

Step 3-1: Cut 3–4 vertical wires from the wire mesh that goes around the post, leaving enough room for horizontal wires to wrap around.

Step 3-2: Wrap the horizontal wires around the wire mesh on the opposite side of the post to allow the whole mesh to wrap around the post.

Step 4: Install a fencing stretching board at the other end of the wire mesh and insert its wedges into its ferrule, and fix it with a hammer.

Step 5: Install 2 chains and 2 steel wires on the end post near the fencing stretching board, and then tension them tightly with wire tensioning tools.

Step 6-1: Cut 3–4 vertical wires from the wire mesh that goes around the post, leaving enough room for horizontal wires to wrap around.

Step 6-2: Wrap the horizontal wires around the wire mesh on the opposite side of the post to allow the whole wire mesh to wrap around the post.

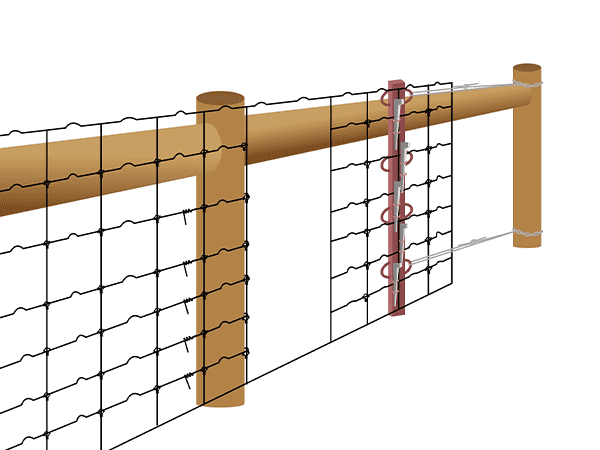

Step 7: Cut off the excess wire mesh and remove the fencing stretching board and wire tensioning tools. Then the other end fixation is complete.

Step 8: Field fence installation is complete.
