Drive the end post with post driver.
Vineyard Post Installation Step by Step
Vineyard posts play a crucial role in maintaining the proper growth and health of grapevines. They support the weight of the vines, help them stay upright, and provide a framework for training the vines in a specific direction to optimize sunlight exposure and airflow.
Steel vineyard posts are designed to replace traditional wooden posts and offer several advantages such as durability, longevity, and resistance to weather conditions. Steel vineyard posts are typically made from galvanized or coated steel to prevent rust and corrosion, ensuring a longer lifespan.
Here we will guide you install the steel vineyard posts and the trellis wires step by step, Here is the outline:
- Preparation
- Plan & Mark
- Install end post
- Install intermediate post
- Install ground anchor
- Install Intermediate Wire
- Install Top Wire
- Finished
Prepare Things You Will Need
- Steel Vineyard Posts
- Anchor
- Wire Tension Tool
- Vineyard Ground
- Wire Joiners
- Wire Twister
- High Tensile Strength
- Wire Protector
- Hammer
- Galvanized Steel Wire
- Wire Rope Thimble
- Post Driver
- Wire Cutter
Step 1: Plan and Mark
Before you begin, plan the layout of your vineyard and mark the locations where you want to install the posts. Ensure proper spacing between posts for optimal vine growth. Now, I will take the 25' for example.
Step 2: Install End Posts
The end post is very important to the whole system, because it will withstand the whole system weight and bear the heavy wind attack. So the end post installation must be firmly and stable in right way.

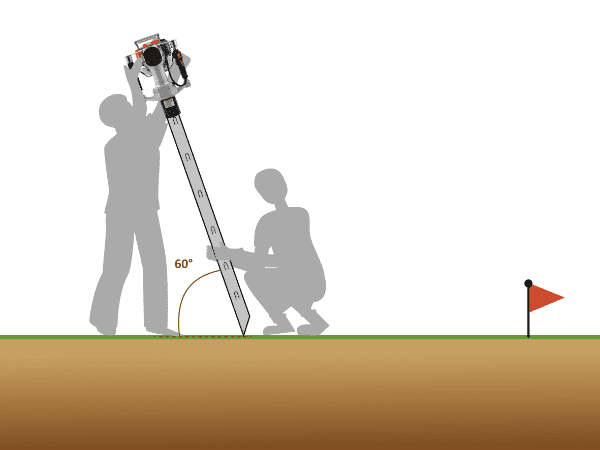

Drive the end post at marked position. It should be buried about 3' – 4' deep and in 60° angle.

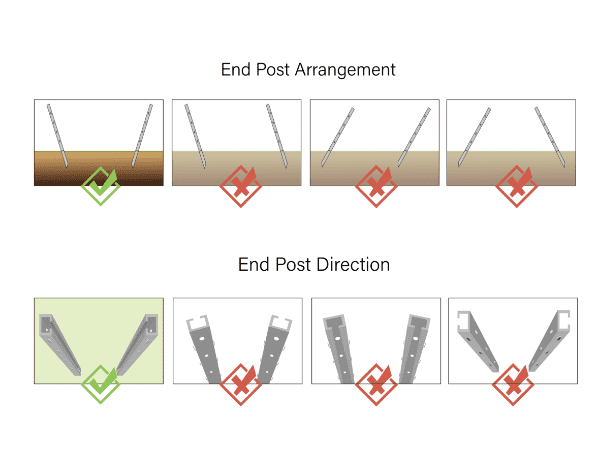

Confirm the end posts are installed in the right direction
Step 3: Install Intermediate Posts
Once the end posts are in place, install the intermediate posts along the length of the vineyard row. These posts provide additional support and structure for the trellis system. Space them according to your desired trellis wire configuration.
Straightly Drive the post with post driver

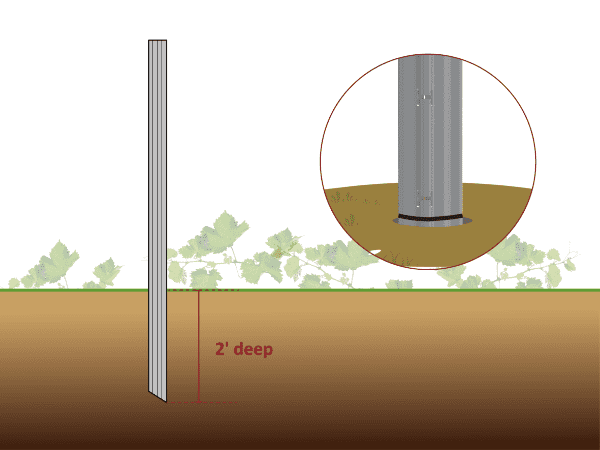

Drive intermediate post at marked position. It should be buried about 2' deep

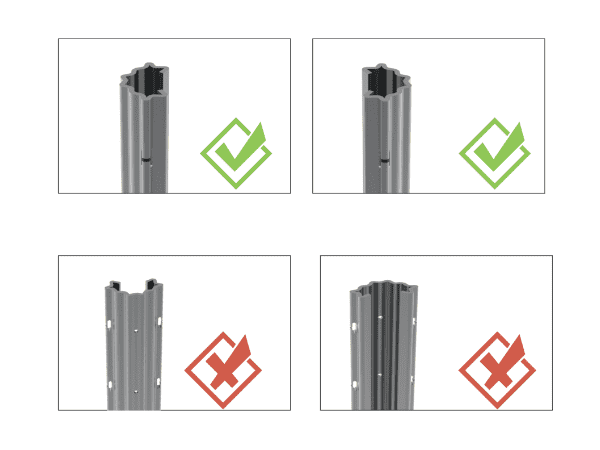

Confirm the end posts are installed in the right direction
Step 4: Install Ground Anchor
After installing the end and intermediate posts, you may install ground anchors. Ground anchors are used to provide extra stability to the posts, especially for vertical trellis systems that experience tension from the grapevines and wires. Attach the ground anchors securely to the posts and anchor them firmly into the ground.
Drive the ground Anchor fully into the ground, to a depth of at least 1 m
Lift the ground anchor horizontally use the steel rod passing through the eyelets of steel rope.
Thread the wire rope through the holes at the bottom of the end post and fastened
Once the posts are securely in place, you can attach trellis wires to them. Attaching trellis wires is a crucial step in setting up a vineyard to support the growth of grapevines. Trellis wires provide the structure on which grapevines will grow and can be used to guide their growth in a desired manner.
Step 5: Attach Bottom Trellis Wire
Begin by attaching the bottom trellis wire. This wire is usually installed a few inches above the ground and serves as the starting point for training the grapevines.
The trellis wire arrange is variable according to different vine system. You can adjust them according to your condition. Here, we set the bottom trellis wire with double wire.

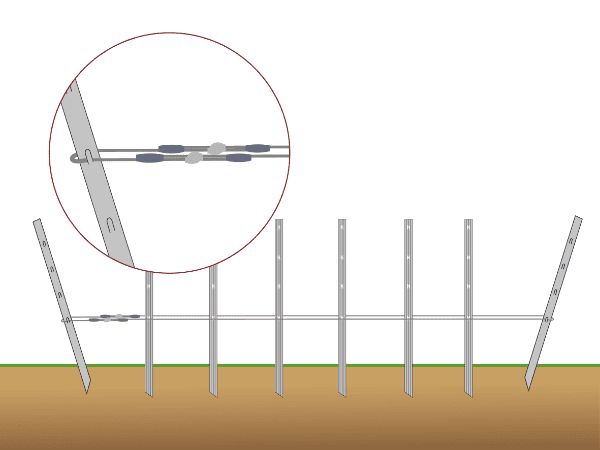

Pick up a piece of galvanized steel wire and fasten them on the side channel.
Fasten the steel wire on the side channel of intermediate post and end post, then back to the beginning position.
Fasten the steel wires with wire joiner and wire twister.
Step 6: Install Intermediate Trellis Wire
The intermediate wires will be set in single wire and all wires will thread through the holes on the posts.

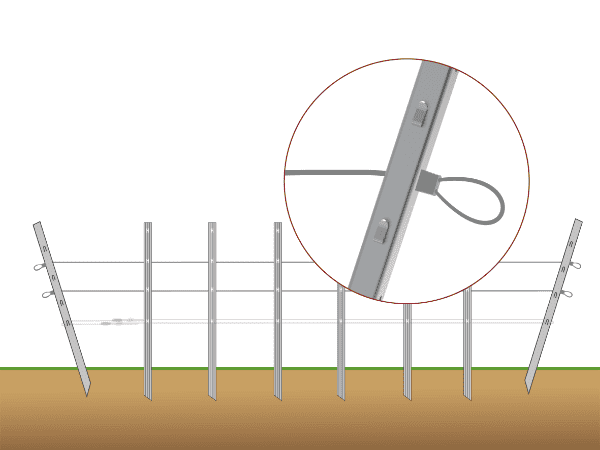

Thread the trellis wire through the hole of end posts and fastened.
Pull the wire tight as you move from post to post.
Fasten the other end of the steel wire onto the end post.
Step 7: Install Top Trellis Wire
The top wire installation is same as the intermediate wire which will be set single wire. If the top wires are double wires, you can refer to the bottom wire installation method.
Thread the trellis wire through the hole of end posts and fastened.
Pull the wire tight as you move from post to post.
Fasten the other end of the steel wire onto the end post.
Step 8: Finished
At last, you will recheck the whole system and start your following jobs. Besides, you can recheck the system during different grapes growing cycle to guarantee the strong support.
Notes
Depending on your vine training system and the height of your grapevines, you might need to install multiple trellis wires above the bottom wire. The distance between two lines of trellis wire in a vineyard depends on various factors, including the grapevine variety, vine training system, climate, and local vineyard practices. Different grapevine varieties and training systems have different requirements for optimal growth and fruit production.

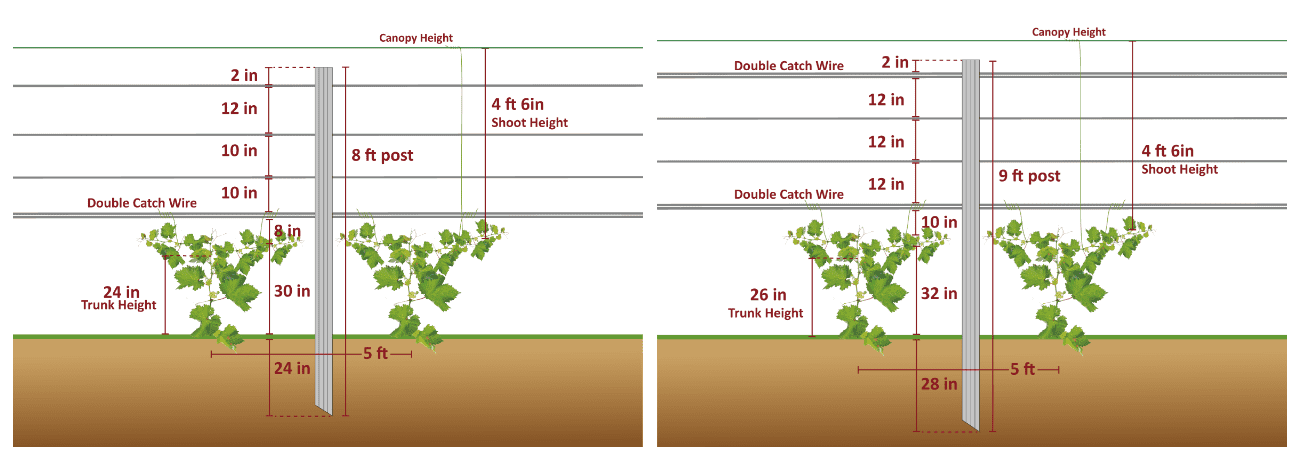

Standard Vertical Shoot Positioning
