Anti-Intruder Mesh Fence – Chain Link and Welded Mesh Types for Higher Security

Anti-intruder mesh fence can delay and deter an attack from visual perspective.

Anti-intruder mesh fence is a mesh which protects cutting and climbing.

  • Chain link fence or welded mesh fence options.
  • High security and anti-intruder.
  • Different materials and finish for choice.
  • At least 2.4 m height.
  • Razor/barbed wires can be supplied along with fences.
  • For the airport, railway, factory and other places for higher security protection.
  • Special discount for large orders and projects.
Barb edge anti-intruder chain link fence with posts, rails on its top.
  • Anti-intruder chain link fence
  • Anti-intruder welded mesh fence
EnZar®

Anti-intruder chain link fence introduction

Chain link mesh anti-intruder fence is made of zinc or class A zinc alloy coated wire conforming to BS EN 10223-6 or organic coated wire conforming to BS EN 10223-6.

Anti-intruder chain link fence has three wire types: line wire, stirrup wire and tying wire. Line wire shall conform to BS EN.10223-6 or BS 4102 with a nominal diameter of 3.00 mm. It's used to across the entire panel horizontally and linked together with posts at the ends. Stirrup wire, for securing line wires to intermediate posts, shall conform to BS 4102 with a nominal diameter of 2.50 mm. Tying wire, for securing mesh to line wires, shall conform to BS 4102 and be made of mild steel with a nominal diameter of 1.6 mm. In addition, to fix our chain link fence panel, concrete, steel and wooden posts could be used totally. Because steel posts are more rigid and anti-corrosion, we mainly offer steel posts with well-suited holes but not wooden or concrete posts in consideration of transportation and costing. We can provide two types of posts: normal mesh fixed posts and heavy duty mesh fixed posts. Intermediate posts, straining posts and struts are supplied separately in our company.

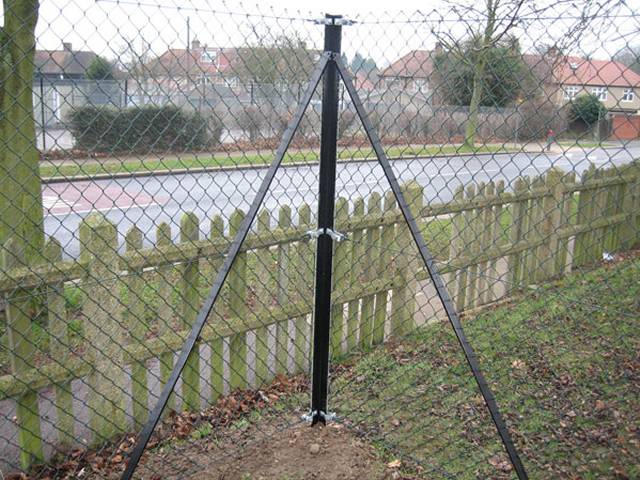

A pair of bracing posts are supporting a straining post.

A pair of bracing posts provide a firm bearing for the straining posts and keep it more durable.

Several intermediate posts are installed in order to fix chain link fence.

Several intermediate posts provide stability for anti-intruder chain link fence.

Chain link anti-intruder fencing, at least 2.4 m in height for a higher level protection than common chain link fencing, have two extension types: single extension arm and double extension arms on the posts for installing barbed wire and razor wires on the top.

Anti-intruder fence with single extension arms and barbed wires on the top.

Anti-intruder chain link fence with single arm causes a visual danger and gives people an aesthetic appearance.

Anti-intruder chain link fence with double extension arms on the top.

Anti-intruder chain link fence with double extension arms on the top has higher anti-climbing strength.

EnZar®

Dimensions

  • Material: mild steel wire.
  • Wire coating (conforming to BS EN 10223-6): zinc coated wire, zinc-aluminum alloy coated wire, plastic coated wire.
  • Top shape: barb.
  • Fence panel height: 2.4 m if it is not be buried, 2.7 m if it is to be buried.
  • Colors: green, black, blue, white. All RAL color is available.
  • Accessories: steel posts, struts, tie wire, gate, extension arms, barbed wire, base plates, eye bolt strainers and cleats, winding brackets, stretcher bars, bolts, nuts and washers.
  • Post type: intermediate post, straining post, gate posts and struts.
  • Hair pin staples
    • For fixing barbed wire to extension arms or droppers, use galvanized hair pin staples with 3 mm diameter and 30 mm in length.
    • For fastening down the bottom of galvanized mesh wire, use zinc coated hair pin staples with 3.55 mm diameter wire and 30 mm in length, bent outwards to secure anchorage.
    • For fastening down the bottom of plastic coated chain link fence, use plastic coated hair pin staples with core diameter 3.55 mm and outside diameter 4.75 mm wire, bent outwards to secure anchorage.
Table 1: Anti-Intruder Chain Link Fencing Specifications (dimensions in millimeters)
Item Type of Mesh Protection Mesh Wire Line Wire Diameter Stirrup Wire Diameter Tying Wire Diameter
Mesh Size Zinc Coated Wire Diameter Plastic Coated Wire Diameter Grade A Zinc Coated Wire Plastic Coated Wire Grade A Zinc Coated Wire Plastic Coated Wire Grade A Zinc Coated Wire Plastic Coated Wire Grade A
Core Wire/External Wire Core/External Wire Core/External Wire Core/External Wire
EZAFC-01 Zinc Coated Chain Link 40 3.55 - 4.00 - 2.5 - 1.60 -
EZAFC-02 Zinc Coated Chain Link 50 3.55 - 4.00 -- 2.5 - 1.60 -
EZAFC-03 Zinc Coated Chain Link 50 5.00 - 5.00 - 2.5 - 1.60 -
EZAFC-04 Plastic Coated Chain Link 50 - 3.55/4.75 - 3.55/4.75 - 2.50/3.55 - 1.40/2.00
EZAFC-05 Plastic Coated Chain Link 50 - 4.75/6.40 - 4.75/6.40 - 2.5/3.55 - 1.40/2.00
NOTES:
  • Line Wire: Mild steel line wire shall conform to BS 4102 with a diameter conforming to Table 1.
  • Stirrup Wire: Stirrup wire, used for securing line wires to intermediate posts, shall be of mild steel conforming to BS 4102 with a diameter conforming to Table 1.
  • Tying Wire: Tying wire, used for securing mesh to line wires, shall be of mild steel conforming to BS 4102 with a diameter conforming to Table 1.
Table 2: Post Specifications
Item Type of Post Post Height (m) Intermediate Posts Section Straining Posts Section Struts Section A)
Normal Mesh C) (mm) Heavy Duty Mesh D) (mm) Normal Mesh C) (mm) Heavy Duty Mesh D) ( mm) Normal Mesh C) (mm) Heavy Duty Mesh D) (mm)
EZAFCP-01 Rolled Steel Angle 3.2 50 × 50 × 6 60 × 60 × 6 60 × 60 × 8 75 × 75 × 8 45 × 45 × 5 50 × 5 × 6
EZAFCP-02 Rectangular Hollow Section E) 3.2 50 × 50 × 3 50 × 50 × 4 60 × 60 × 3 60 × 60 × 4 50 × 5 × 3 50 × 5 × 4
EZAFCP-03 Circular B) Hollow Section E) 3.2 48.3 × 3.2 60.3 × 4 60.3 × 4 76.1 × 4 48.3 × 3.2 48.3 × 3.2
Notes
  • A) All struts shall have a horizontal tie bar not less than 600 mm long, securely fixed to strut and straining post with bolts not less than 8 mm nominal diameter.The ends of hollow sections are to be capped or sealed.
  • B) Excluding extension arm.
  • C) Normal mesh for wire diameters of 3.55 mm zinc coated and 3.55 mm/4.75 mm plastic coated.
  • D) Heavy duty mesh for wire diameters of 5.0 mm zinc coated and 4.70 mm/6.4 mm plastic coated.
  • E) The ends of tubes and hollow sections are to be capped or sealed.
EnZar®

Advantages

  • High-security protective level. Anti-intruder chain link fence is 2.4 m in height if it isn't buried or 2.7 m if it is buried. And they could be equipped with barbed wires.
  • Durability. The fence is galvanized or PVC coated, therefore, it could be anti-corrosion when it's exposed outside.
  • Inexpensive. Raw materials are purchased from experienced suppliers, and our production equipment is more advanced than most of other factories.
Galvanized and PVC coated anti-intruder chain link fence.

Galvanized and PVC coated anti-intruder chain link fence have an anti-corrosion character.

Anti-intruder chain link fence with barbed wires.

Anti-intruder chain link fence with barbed wires has a high-security protective level.

EnZar®

Production & Package

Anti-intruder chain link fence weaving machine is easy to operate. It adopts automatic cutting wire and closing edge way. In addition, our machine is more advanced than most of other factories. Therefore, the surface of panel is smooth and quality is reliable. After producing, high-quality anti-intruder fence is packaged. Of course, they are packaged by woven bags in both edge in most of occasions. However, if you have a high requisition, we will package the whole bundle by woven bags.

Anti-intruder chain link fence is produced by machine in factory.

Produced by advanced machine can improve quality and production speed of anti-intruder chain link fence.

PVC coated anti-intruder chain link fence is tied into a bundle and then packaged by woven bags.

Anti-intruder chain link fence is packaged by woven bags in both ends in order to protect two edge from deformation.

EnZar®

Application

Anti-intruder chain link fence is a high-security level fence, therefore, it suits for sites which need higher security, such as factory, airport, commercial sites, playground, freeway and farm.

Anti-intruder chain link fence with barbed wires is installed in factory.

Anti-intruder chain link fence with barbed wires in factory protects factory equipment from being destroyed and stolen.

Anti-intruder chain link fence with barbed wires is installed in the roadway.

Anti-intruder chain link fence with barbed wires in the roadway protects passengers from falling down sea.

EnZar®

Anti-intruder welded mesh fence introduction

Anti-intruder welded wire mesh fence is made from mild steel wire, which conform to BS EN 10223-4. Anti-intruder welded mesh fence is very tight construction and its anti-climbing and anti-cutting functions is quite outstanding. In most of occasions, it's installed with razor or barbed wires on the top. But sometimes a roll top anti-intruder welded mesh fencing is quite important.

Anti-intruder welded mesh fence with razor barbed wires.

Razor barbed wires can enhance security of anti-intruder welded mesh fence.

Anti-intruder welded mesh fence with no sharp edges and its top is rolled.

Roll top anti-intruder welded mesh fence enhances security and rigidity.

The height of welded mesh fence is commonly 2.4 m if it is not buried and 2.7 m if it is to be buried. Sometimes, the plastic coated welded wire mesh will be separated into two pieces, the two panels will be overlapped horizontally by a minimum of two complete meshes. Or when the height of one piece anti-intruder welded mesh fence can't reach enough height, you can choose to connect another piece fence which height is random within 2.4 m by clamp bars and inward screw connection designation. Anti-intruder welded mesh fence can be connected with different posts, including intermediate post and straining post. Intermediate post includes many types.

Outward cracked intermediate post of welded anti-intruder mesh fence is installed in airport.

The anti-intruder mesh fence is used in airport for protecting public property from being destroyed.

Straight intermediate post welded fence is installed outside the residential ares in dry environment.

The anti-intruder mesh fence is used outside the residential areas to protect someone from climbing.

EnZar®

Dimensions

  • Material: mild steel wire.
  • Wire coating (conforming to BS EN 10223-6): zinc coated wire, zinc-aluminum alloy coated wire and plastic coated wire.
  • Wire diameter: 3.00 mm.
  • Mesh size: 50 mm × 50 mm or 75 mm × 25 mm.
  • Fence panel height: 2.4 m if it is not be buried, 2.7 m if it is to be buried.
  • Panel width: 2000 mm, 2500 mm.
  • Colors: green, black, blue, white. All RAL color is available.
  • Accessories: steel posts, struts, tie wire, gate, extension arms, barbed wire, base plates, stretcher bars (clamping bars), stainless steel clips, bolts, nuts and washers.

Specification of accessories

  • Line wire diameter: 3.0 mm.
  • Stirrup wire diameter: 2.5 mm.
  • Tying wire diameter: 1.6 mm.
  • Post type: intermediate post, straining post, gate posts and struts.
Table 3:Anti-intruder Welded Mesh Fencing Specifications
Item Material Wire Diameter (mm) Mesh Size (mm) Height (m) Separate Height (m)
Bottom Panel Top Panel
EZAFW-01 Zinc Coated Wire 3 50 × 50 2.4
EZAFW-02 Zinc Coated Wire 3 50 × 50 2.7
EZAFW-03 Zinc Coated Wire 3 75 × 25 2.4
EZAFW-04 Zinc Coated Wire 3 75 × 25 2.7
EZAFW-05 PVC Coated Wire 3/4 mm 50 × 50 2.4 1.5 1.0
EZAFW-06 PVC Coated Wire 3/4 mm 75 × 25 2.4 1.5 1.05
EZAFW-07 PVC Coated Wire 3/4 mm 50 × 50 2.7 1.8 1
EZAFW-08 PVC Coated Wire 3/4 mm 75 × 25 2.7 1.8 1.05
EnZar®

Advantages

  • High-security: This anti-intruder welded fence is 2.4 m in height if it is buried or 2.7 m in height if it isn't buried.
  • Durability: The fence is PVC coated, therefore, it could be anti-corrosion resistant when exposed outside.
  • Form diversity: Anti-intruder welded mesh fence has many forms, therefore, it can be applied to many different functional areas.
  • High-quality: Anti-intruder welded mesh fence is produced by machine, our equipment is more advanced than most of other factories. Therefore, our products are high-quality and inexpensive.
PVC coated anti-intruder welded mesh fence with barbed wires.

PVC anti-intruder welded mesh fence with barbed wires can improve anti-corrosion and rust resistance performance.

Galvanized anti-intruder welded mesh fence with razor barbed wires.

Galvanized anti-intruder welded mesh fence with barbed wires can enhance anti-corrosion and high-security performance.

EnZar®

Package

Anti-intruder welded mesh fence is put in wooden pallet. And then it's wrapped by plastic films. Finally,the corner and edge of anti-intruder welded mesh fence will be fixed. This way can protect the mesh from impact during transportation. Or, if you have a higher requisition, we can package according to your requisition.

Anti-intruder welded mesh fence is packaged in wooden pallet and wrapped by plastic films.

Wooden pallet and plastic films can protect anti-intruder welded mesh fence from impact and deformation during transportation.

EnZar®

Application

Anti-intruder welded mesh fence is a high-security level fence, therefore, it suits for sites which need higher security, such as factory, airport, commercial sites, playground, roadway and farm.

Straining post anti-intruder welded mesh fence with razor barbed wires is used on the roadway.

Straining post anti-intruder welded mesh fence with razor barbed wires is used on the roadway in order to separate plant areas from roadway.

Anti-intruder welded mesh fence is installed in the factory.

Anti-intruder welded mesh fence in factory can keep its safe.
