VP-01: Typical vineyard post
- Material: Q235.
- Surface treatment: electro galvanized, hot dipped galvanized, PVC coated.
- Post thickness: 1.2-2.5 mm.
- Section size: 54 mm × 30 mm, 60 mm × 40 mm.
- Length: 1.5-3.0 m.
EnZar®
Dimensions
- Typical Vineyard Post
- Double Diamond Vineyard Post
- Diamond Back Vineyard Post
- T Post
- Round Edge Vineyard Post
- Straight Edge Vineyard Post
VP-02: T-shape vineyard post
- Material: rail steel, low carbon steel.
- Surface treatment: color painted and hot dip galvanized.
- Post thickness: 2-6 mm depends on your requirements.
- Weight: 0.95-1.33 lbs/ft.
- Length: 1.5-2.5 m.
VP-03: Diamond back vineyard pos
- Material: galvanized steel.
- Surface treatment: hot dip galvanized steel.
- Post thickness: 1.5 mm, 1.8 mm, 2.0 mm.
- Section size: 60 mm × 30 mm.
- Length: 1.4-2.5 m.
VP-04: Double diamond vineyard post
- Material: galvanized steel.
- Surface treatment: anti-corrosion treatment of hot dip galvanized steel.
- Post thickness: 1.5 mm, 1.8 mm, 2.0 mm.
- Section size: 60 mm × 30 mm.
- Length: 1.4-2.5 m.
VP-05: Round edge vineyard post
- Material: bare or galvanized steel.
- Surface treatment: hot dipped galvanized, PVC coated.
- Post thickness: 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm.
- Section size: 52 mm × 21 mm.
- Length: 1.8-3 m.
VP-06: Straight edge vineyard post
- Material: bare or galvanized steel.
- Surface treatment: hot dipped galvanized, PVC coated.
- Post thickness: 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm.
- Section size: 52 mm × 21 mm.
- Length: 1.8-3 m.
EnZar®
Features
Compared with other traditional vineyard posts, the steel vineyard posts have lots of advantages as follows:
- Strongest design, long lasting. They are designed scientifically and the strong design can resist the outside impact. The anti-erosion galvanized or PVC coated surface makes them have a long life.

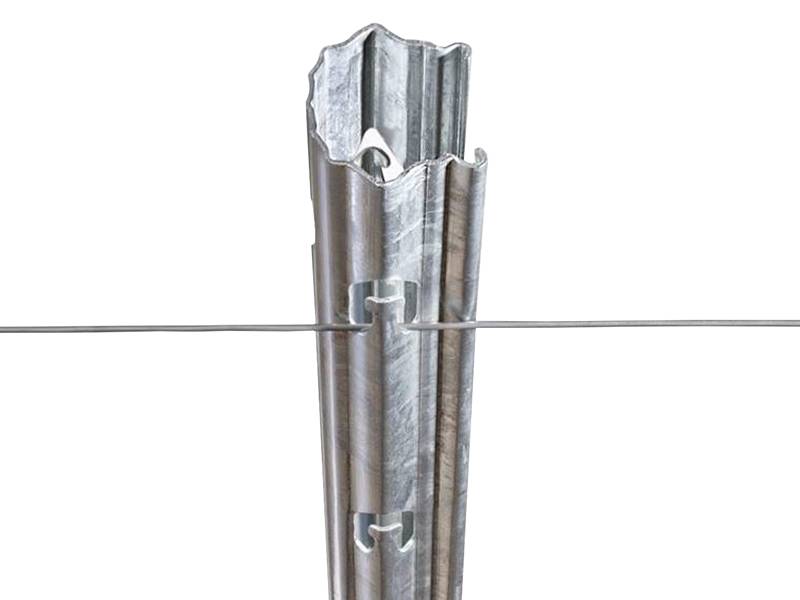

- Wire slot provides complete control of trellis wires. The wire slot can control the trellis wires so that the vines can depend on the trellis firmly.
- Reduce installation and set-up costs. With special design, It is easy for people to install them and thus saves lots of energy and costs.
EnZar®
Applications
- The metal vineyard stakes are popular in European markets and American markets, such as Spain, France, Chile and so on.
- The metal vineyard steel post systems mainly used in vineyard, orchard, grape manor, agriculture plantation and farming for grape plants and other climbing plants support, and they can be used for hail protection systems at the same time.
Double diamond vineyard posts for grapes.
Vineyard post supports the plants.
Vineyard posts and horizontal rails in the fields.
Several galvanized typical vineyard posts and plants are in the orchard.
Steel vineyard posts support plants with steel wires.

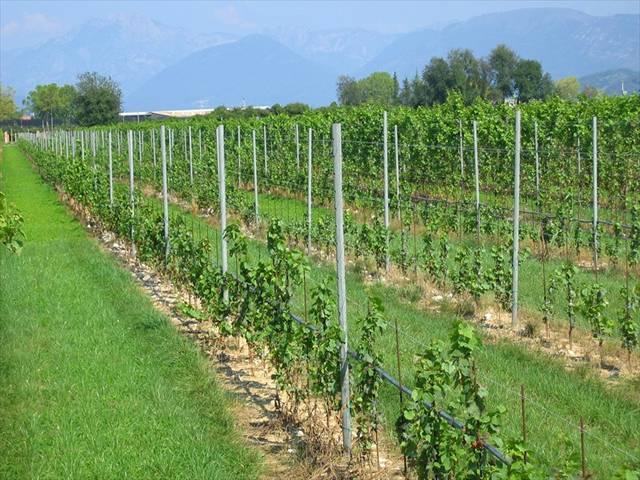

Some galvanized vineyard posts are installed in the vineyard.
EnZar®
Package
The vineyard post can be packed in metal strip and pallet.
Metal strips can fasten the posts.
Pallet can protect post from impacts.
