High tensile Fixed Knot Fence for Efficient Management

Fixed Knot Fence combines the familiar hinge joint knot with high tensile steel wire. This field fence has stronger fabrics and can be installed quickly with fewer fence posts. This means that field fencing with fixed knots brings reduced cost and less maintenance compared with other wire fences.

This heavy duty mesh made of the strong knot fixed structure prevents the displacement of wires.

Higher strength than hinge joint fence.
Different height options.
Different horizontal wire spacing for different strength requirements.
Different vertical wire spacing for different animals or poultry.
Ideal for cattle, deer, horse and even camel.
Special discount for large orders and projects.
Hinge joint fence is also available.

A piece of fixed knot field fencing on the white background.

EnZar^®

Dimensions

Material: Heavy galvanized mild steel carbon wire with extremely high tensile strength, a green PVC coated finish or other treatment also offered.
Horizontal wires: 2.50 mm, Tensile strength: 1200–1400 N/mm²
Vertical wires: 2.50 mm, Tensile strength: 820–970 N/mm²
Node wires: 2.24 mm, Tensile strength: 400–550 N/mm²
Zinc coating: 230–350 g/m².

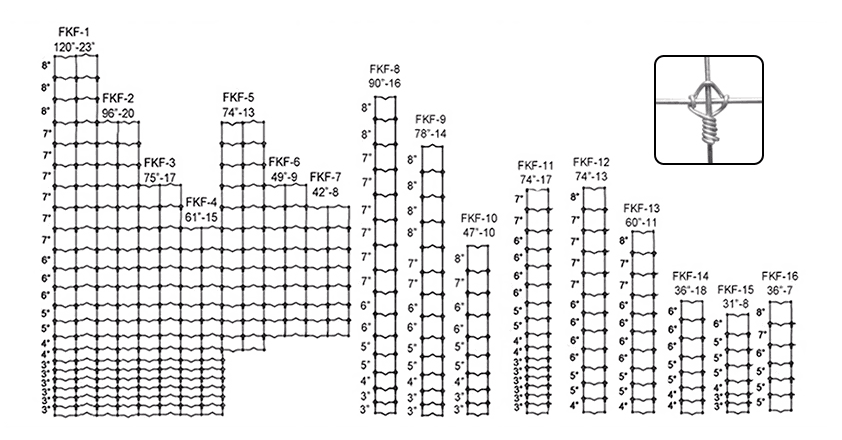

A drawing shows different height of fixed knot fence.

Different configurations of fixed knot fence.

Table 1: Popular Specifications of Fixed Knot Fence
Types	Fence height (cm)	Number of horizontal wires	Distance of vertical wires (cm)	Roll length
EZFK100/8/15	100	8	15	50 m, 100 m, 150 m
EZFK100/8/30	100	8	30	50 m, 100 m, 150 m
EZFK120/9/15	120	9	15	50 m, 100 m, 150 m
EZFK120/9/30	120	9	30	50 m, 100 m, 150 m
EZFK150/11/15	150	11	15	50 m, 100 m, 150 m
EZFK150/11/30	150	11	30	50 m, 100 m, 150 m
EZFK150/14/15	150	14	15	50 m, 100 m, 150 m
EZFK160/20/15	160	20	15	50 m, 100 m, 150 m
EZFK160/23/15	160	23	15	50 m, 100 m, 150 m
EZFK180/13/15	180	13	15	50 m, 100 m, 150 m
EZFK180/24/15	180	24	15	50 m, 100 m, 150 m
EZFK200/18/15	200	18	15	50 m, 100 m, 150 m
EZFK220/26/15	220	16	15	50 m, 100 m, 150 m

EnZar^®

Advantage

Strong. The fixed knot structure with strong wire can withstand strong impacts.
Flexibility. The flexibility wires makes it to strong impacts, the mesh can return to its original position and maintaining its tension.
Long life. The triple galvanized provides high corrosion resistance, high durability and long life even in adverse conditions.
Easy install. Due to its high stiffness, it allows the posts every 7 meters, offering extraordinary savings in both material and installation time.
Wide range of applications. For wild cattle fences, horses fencing, big game hunting grounds, perimeter fencing, plantations fence, hunting fencing.
Galvanized standard. A high-wire base triple galvanized resistance.
Galfan galvanized Composition = 95% Zinc + 5% Aluminium.

EnZar^®

Applicatione

Fixed knot fence with solid lock construction is mainly used as field fencing to protect cattle such as deer, horse, cow, sheep and goats, and also used as grassland fence and farm fencing. It is also called game fencing.A roll of zinc coating fixed knot fence
This extra strong field fences are ideal for keeping wildlife living deer and other animals away from forest crops and garden plants.

Several cattle in the enclosure of fixed knot fencing.

For cattle

A horse in the enclosure of fixed knot fencing.

For horse

A deer in the enclosure of fixed knot fencing.

For deer

Two camels in the enclosure of fixed knot fencing.

For camel
