Galvanized hardware cloth
The Global Leader in Field Fence & Posts
Please tell us

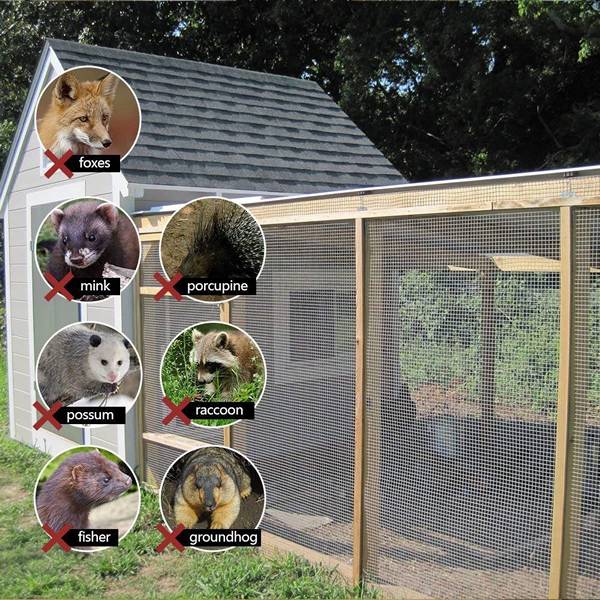

Hardware Cloth is a wire mesh that consists of welded wires in a square or rectangular grid. Hardware cloth mesh is available in galvanized steel and stainless steel. It is typically used for small animal coops, pest & varmint control and plant protection. Hardware cloth is an economical solution that is easy to install and alter to meet your needs.
Dimensions

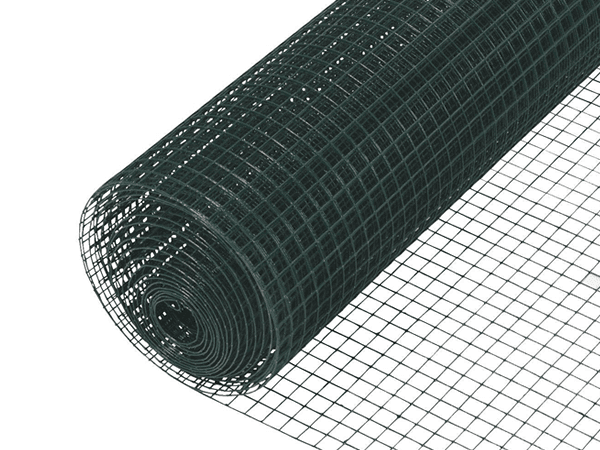

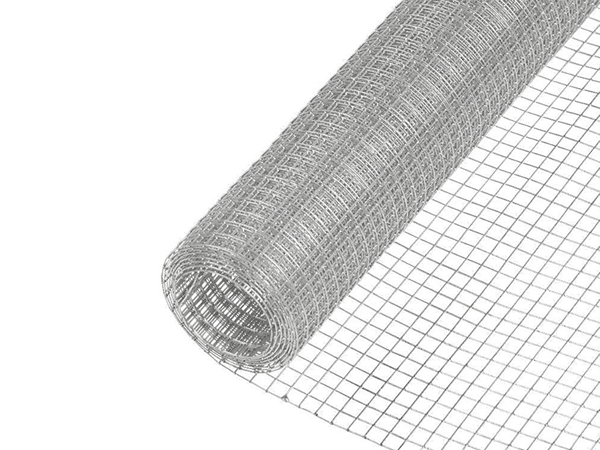

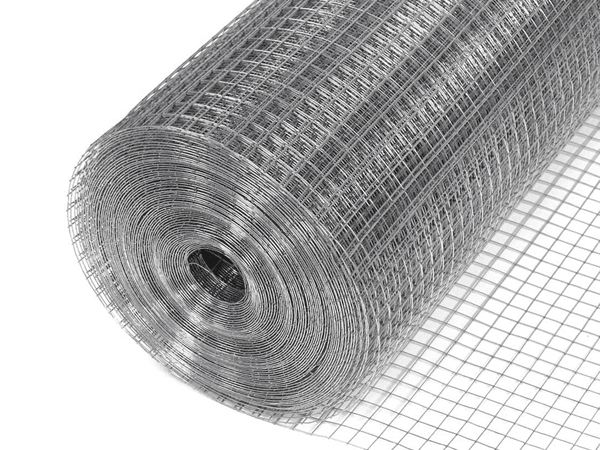

Materials: galvanized steel wire, stainless steel wire, PVC coated steel wire.
Surface Treatment:
Specifications
Opening | Wire Diameter (BWG) | |
---|---|---|
In inch | In Metric Unit (mm) | |
1/4" × 1/4" | 6.4 mm × 6.4 mm | 22, 23, 24 |
3/8" × 3/8" | 10.6 mm × 10.6 mm | 19, 20, 21, 22 |
1/2" × 1/2" | 12.7 mm × 12.7 mm | 16, 17, 18, 19, 20, 21, 22, 23 |
5/8" × 5/8" | 16 mm × 16 mm | 18, 19, 20, 21, |
3/4" × 3/4" | 19.1 mm × 19.1 mm | 16, 17, 18, 19, 20, 21 |
1" × 1/2" | 25.4 mm × 12.7 mm | 16, 17, 18, 19, 20, 21 |
1-1/2" × 1-1/2" | 38 mm × 38 mm | 14, 15, 16, 17, 18, 19 |
1" × 2" | 25.4 mm × 50.8 mm | 14, 15, 16 |
2" × 2" | 50.8 mm × 50.8 mm | 12, 13, 14, 15, 16 |
Technical Notes
|
Opening | Wire Diameter (BWG) | |
---|---|---|
In inch | In Metric Unit (mm) | |
1/2" × 1/2" | 12.7 mm × 12.7 mm | 16, 17, 18, 19, 20, 21 |
3/4" × 3/4" | 19 mm × 19 mm | 16, 17, 18, 19, 20, 21 |
1" × 1" | 25.4 mm × 25.4 mm | 15, 16, 17, 18, 19, 20 |
Technical Notes
|
Advantages
Applications
